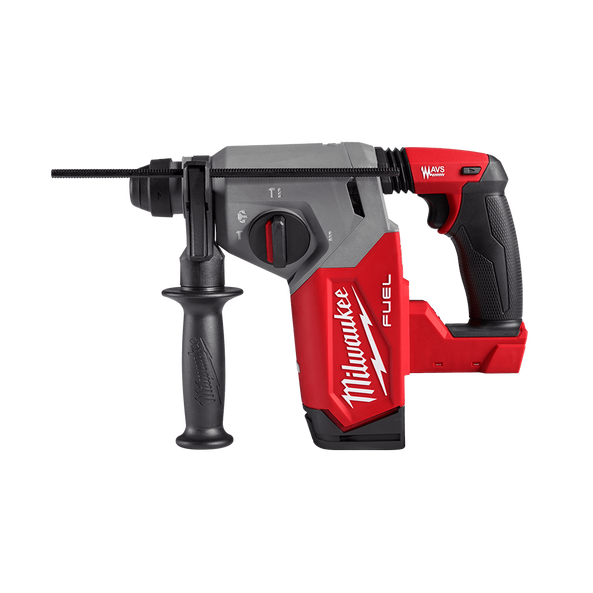

Milwaukee M18 FUEL 18v 3 Mode 26mm SDS Plus Rotary Hammer Drill (Tool Only)
M18FH-602C
3 Mode:
Mode 1 Chisel with Rotary Stop - Ideal for breaking up bricks and other Masonry Products
Mode 2 Drill with Rotation Only - For Steel or Wood
Mode 3 Drill with Percussion Rotation - For Drilling into Masonry
This Rotary Hammer can drill through Masonry with absolute ease thanks to its cylinder of air that is compressed by a piston which in turn beats the bit.
Get any concrete drilling task done up to 75% quicker than a standard Impact Hammer Drill.
An ordinary Hammer Drill, also known as an Impact Drill, has two ribbed discs that click in and out against each other causing impact as the chuck raises and falls slightly.
You can only do so much with one of these drills.
If you have a serious amount of masonry drilling to do then buy a Rotary Hammer Drill !
This is our most popular Milwaukee Model of Brushless Medium Sized Rotary Hammers
This is a 3 Mode Rotary Hammer Drill so it has rotation stop mode that enables the user to perform chisel work.
The POWERSTATE™ Brushless Motor delivers users 2.7 J of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications.
REDLINK™ PLUS Intelligence tool technology ensures maximum rotary drill performance and protects the tool from overload, overheating, and over-discharge.
The MILWAUKEE® M18 FUEL™ 26 mm SDS Plus Rotary Hammer includes AUTOSTOP™ Kickback Control for maximum control and enhanced safety, with the tool sensing a bind-up situation when users are drilling in rebar or hard aggregate and stopping over-rotation, without the need for the user to release the trigger, indicated by the AUTOSTOP™ Indicator LED.
The Anti-Vibration System (AVS) minimises vibration for maximum comfort when in use for extended periods. A Dedicated Dust Extractor (M18FDEX) is also available (sold separately), which once connected is powered by the Rotary Hammer.
FEATURES
3 mode (Rotary Hammer, Hammer Only, and Rotary Only)
POWERSTATE™ Brushless Motor delivers fast drilling
2.7 J impact energy for hard hitting performance
Anti-Vibration System (AVS) for maximum user comfort
AUTOSTOP™ Kickback Control senses bind-up and prevents over-rotation
REDLINK™ PLUS Intelligence integrates full-circle communication between tool, battery and charger to protect from overloads, over-heating and over-discharge
Integrated LED light for illuminating dark workspaces
Compatible with M18 FUEL™HAMMERVAC™ 26 mm Dedicated Dust Extractor (M18FDEX)
Adjustable depth gauge rod for accurate hole depths
SPECIFICATIONS
PLATFORMM18 FUEL™
MAX RPM1,330
BPM4,800
IMPACT ENERGY2.7 J
VIBRATION REDUCTIONYes
DRILL CAPACITY26 mm (1")
KICKBACK PREVENTIONYes
LENGTH296 mm
WEIGHT3.1 kg
M18 FUEL™ 26 mm SDS Plus Rotary Hammer
(2) M18™ REDLITHIUM™-ION HIGH OUTPUT™ 6.0Ah Battery Pack
M12™ & M18™ Rapid Charger
Case
Hector Jones Ltd are NZ Authorised Sales and Service Agents for Milwaukee Power Tools
5 Year Manufacturer Tool Warranty
These tools are guaranteed by the Authorized NZ Distributor against any defects in workmanship or materials. Defects in construction or operation not attributable to normal wear, overloading, abusive treatment or careless handling will be repaired without charge by any Authorized Milwaukee Service Agents throughout New Zealand or by our own On Site Technical Service Workshop.
