M123PLA-0C M12 3 Plane Laser ( Tool Only )

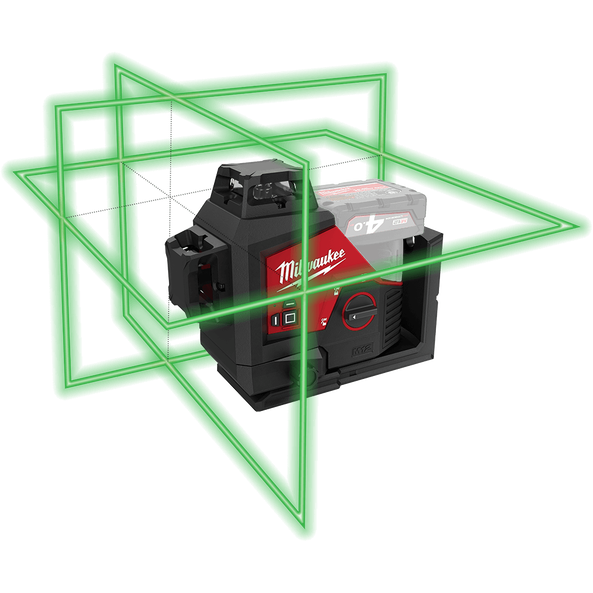

The M12™ 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool.
Powered by our M12™ batteries, users will get 15 hours of continuous run-time with a M12B4 battery pack for ultimate productivity.
The high-intensity green laser offers users superior visibility up to 38m for long-range applications.
The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment.
The M12™ 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.
FEATURES
15 hours of runtime on a single charge using M12™ REDLITHIUM™-ION 3.0Ah battery
Visibility range of up to 38 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge

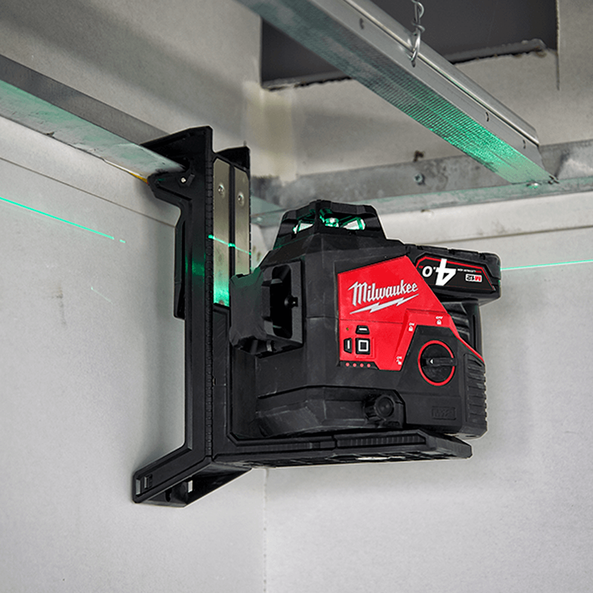

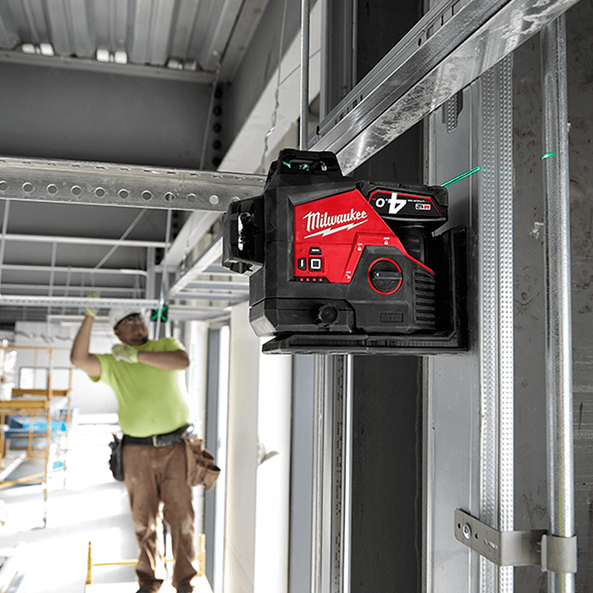

Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8″ tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)
SPECIFICATIONS
PLATFORM M12
IP RATINGS IP54
DIMENSIONS 198 x 104 x 165 mm
WEIGHT 1.09 kg
WARRANTY 3 Years
NUMBER OF BEAMS 3 Plane
LOCKING PENDULUM Yes
SELF-LEVELING ± 4° Tilt
ACCURACY ± 3.18 mm over 10 m
IMPACT RESISTANT 1 m
WORKING RANGE 38 m
RANGE WITH DETECTOR 50 m
THREAD MOUNT 1/4"-20, 5/8"-11

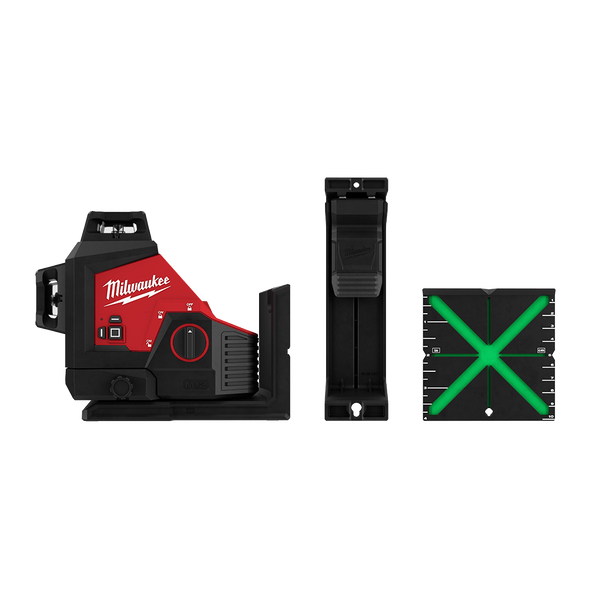

WHAT'S INCLUDED
(1) M12™ 3 Plane Laser (M123PLA)
(1) Laser Track Clip with Quick Connect (48351313)
(1) Laser Target (48351111)
(1) Carrying Case
BATTERY AND CHARGER NOT INCLUDED M12SP-201B
Hector Jones Ltd are NZ Authorised Sales and Service Agents for Milwaukee Power Tools
3 Year Manufacturer Tool Warranty
These tools are guaranteed by the Authorized NZ Distributor against any defects in workmanship or materials. Defects in construction or operation not attributable to normal wear, overloading, abusive treatment or careless handling will be repaired without charge by any Authorized Milwaukee Service Agents throughout New Zealand or by our own On Site Technical Service Workshop.
