Makita 40 Volt XGT Range
MORE Power
MORE Run Time
COOLER Running

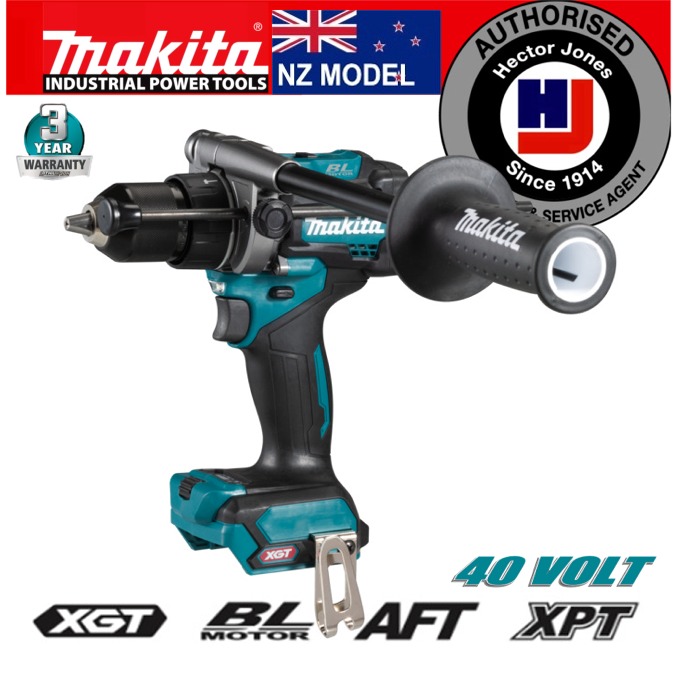

HP001GZ 13mm Hammer Drill
This is Makita's Beast of a Drill - Extreme High Performance
1000 W motor and Delivers 20% or more higher speed than previous model
Unit is 20mm shorter than current DHP481 model and 100g lighter
Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications
Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling, fastening and hammer drilling applications
Compact overall length for easy handling and control
Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
Electronical clutch (41 setting in low 21 High mode) allows for clutch setting in the torque range which cannot be covered with mechanical clutch
- Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque
- Electric brake for maximum productivity and increased operator safety
- LED job light with afterglow feature illuminates the work area
- All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
- Keyless chuck for quick and easy bit installation and removal
- Depth gauge for increased drilling consistency
- Active feedback senses when drill bites aggressively and cuts power reducing kickbacks
Capacity
Steel: 20 mm (13/16")
Wood (Auger-Bit): 50 mm (2")
Wood (Self-Feed Bit): 76 mm (3")
Wood (Hole Saw): 152 mm (6")
Siding Board: 220 mm (8-5/8")
Masonry: 20 mm (13/16")
No Load Speed (RPM)
High / Low: 0 - 2,600 / 0 - 650
Max Fastening Torque
Hard / Soft: 140 / 68 N·m (1,240 / 600 in.lbs.)
Max Lock Torque 125 N·m (1,100 in.lbs.)
Max Peak Torque 141 N･m
Clutch Torque Setting:
High / Low: 1 - 10 / 1 - 45 N·m (9 - 90 / 9 - 400 in.lbs.)
Max Output1,000 W
Dimensions (L x W x H) Weight
w/ BL4040: 182x86x282 mm 3 kgs
Supplied as baretool only
It’s part of Makita’s expanding 40V Lithium-Ion series, the world’s largest cordless tool line-up powered by an 40V Lithium-Ion slide-style battery
