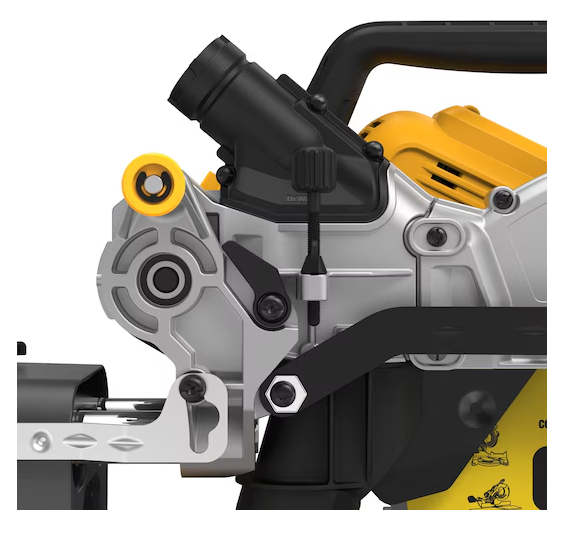

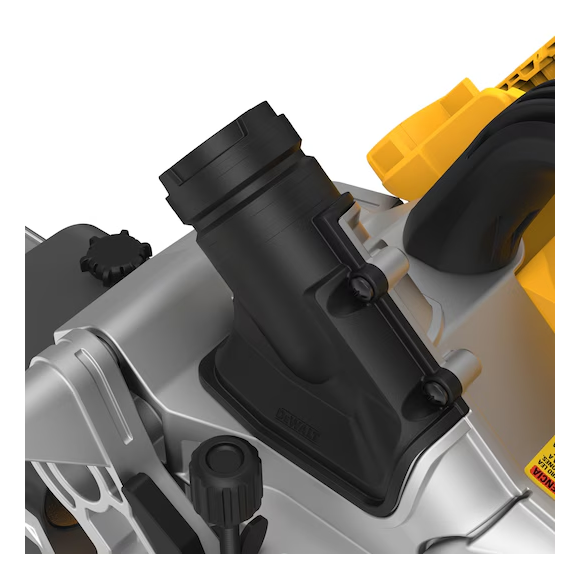

AirLock compatible dust extraction provides cleaner and safer jobsites
Wireless Tool Control allows direct connection to a compatible vac, which provides increased runtime and improves efficiency

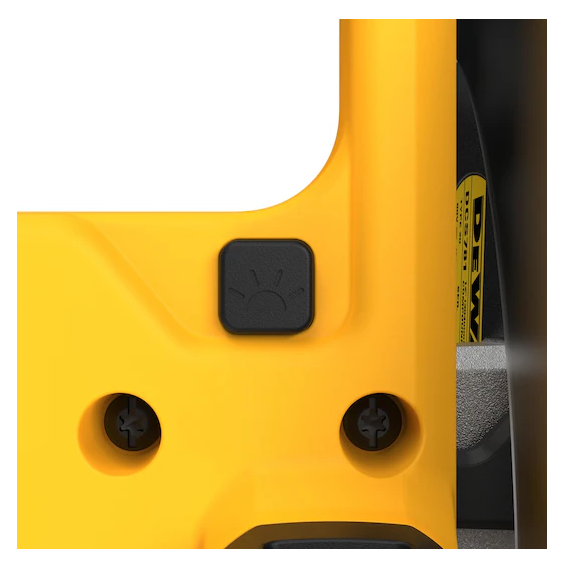

XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

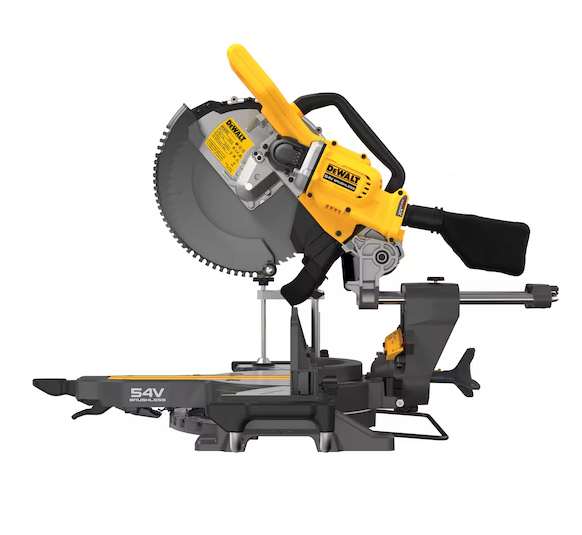

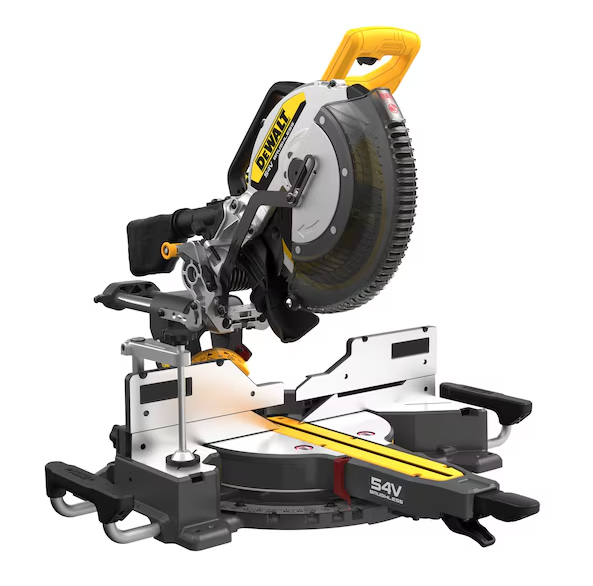

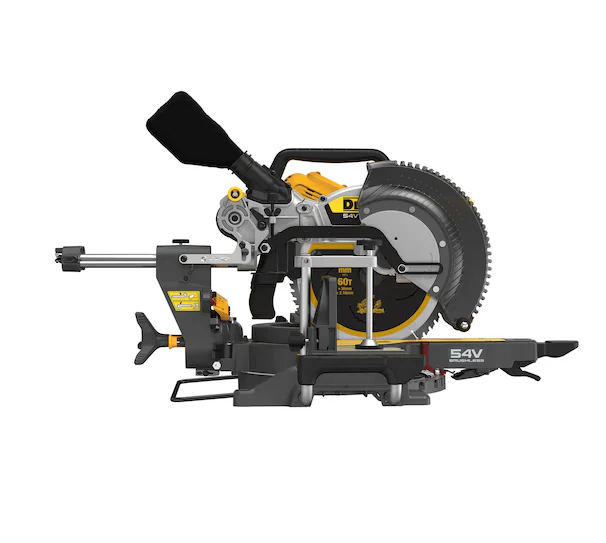

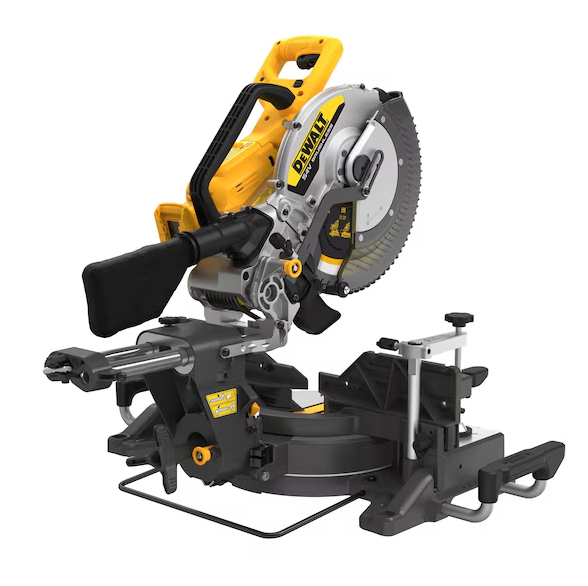

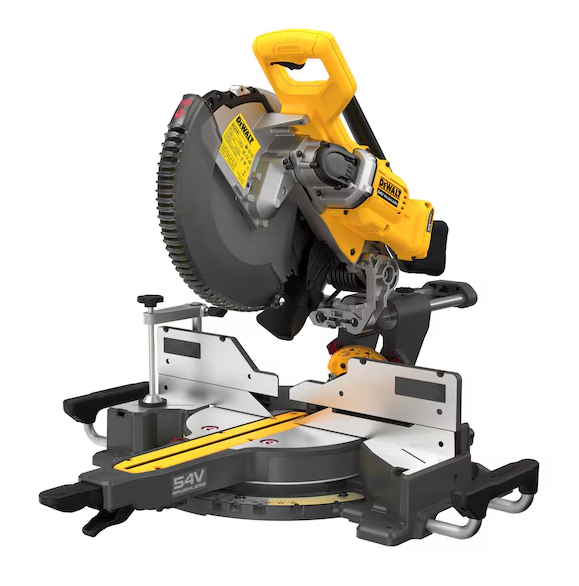

The DCS781 is the ultimate cordless Mitre Saw for first and second fix applications on the jobsite and can deliver up to 675 cuts in 83mm skirting board with one 9Ah XR Flexvolt battery.\nThe powerful 54V brushless motor offers a cutting capacity of 310 x 90mm, with a 165mm height capacity at the fence and the Regenerative Braking Technology extends runtime by redirecting lost energy back into the battery. Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees.\nOther features include Wireless Tool Control to enable automatic stop start dust extraction when used with the DCV586M, XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and 100mm extendable side handles for material support and increased portability on site.
Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
The large 120mm high dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Outstanding cutting performance in both small profiles and large construction timbers up to 90 x 310 mm
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right

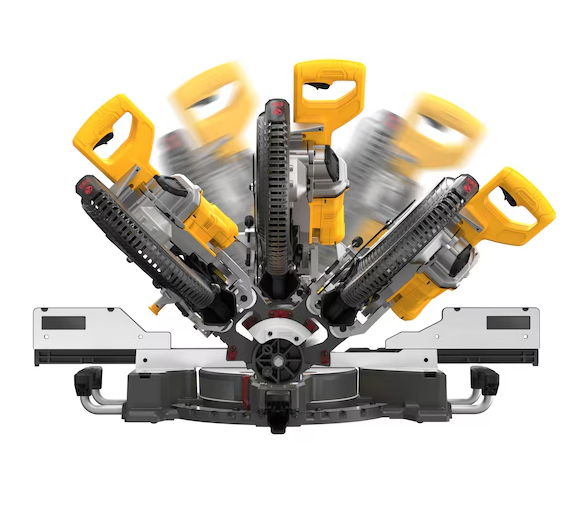

Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right

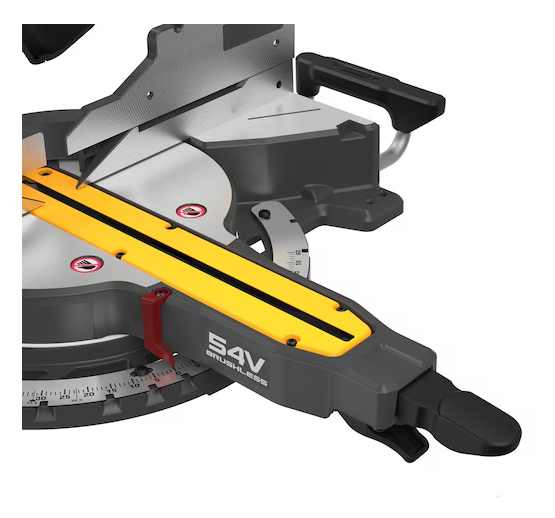

Side extension handles improve portability and handling whilst providing a stable, base for wider material

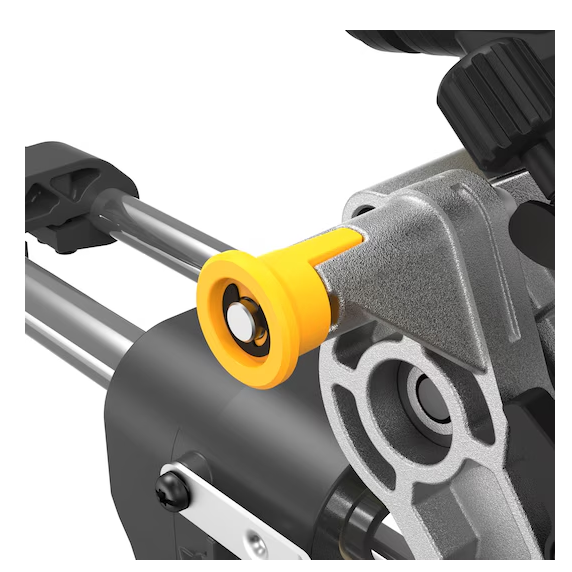

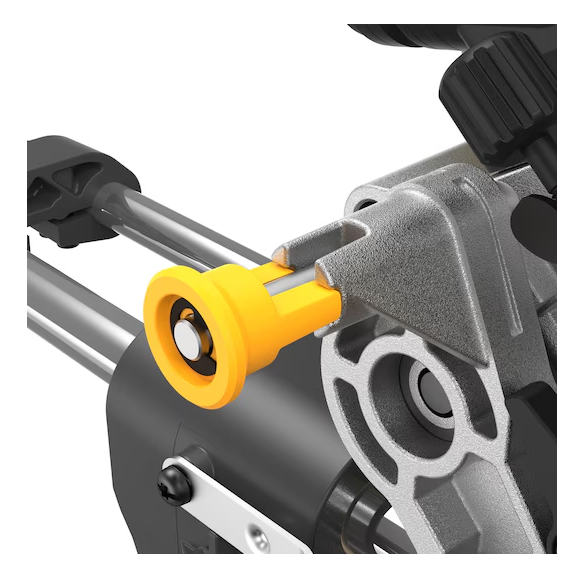

The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applications
Exceptional runtime performance is achieved through a combination of blade, brushless motor design and regenerative braking technology
Blade Bore [Metric] - 25.4 mm
Blade Speed - 3800 rpm
Max. Cutting Capacity (45°/45°) [Metric] - 219 x 54 mm
Max. Depth of Cut [Metric] - 165 x 19 mm
Saw Blade Thickness [Metric] - 2.16 mm
Max. Cutting Capacity (90°/90°) [Metric] - 310 x 90 mm
Product Width [Metric] - 495 mm
No Load Speed (RPM) - 3800
Max. Cutting Capacity (45°/90°) [Metric] - 219 x 90 mm
Product Height [Metric] - 450 mm
Product Weight [Metric] - 23.2 Kg
Blade Diameter [Metric] - 305 mm
Max. Cutting Capacity (90°/45°) [Metric] - 310 x 54 mm
Power Source - Cordless
Voltage - 54 V
Product Length [Metric] - 775 mm
(1) 60T XR EXTREME RUNTIME 305mm Blade
(1) Stabilizer Bar
(2) Base Extensions
(1) Material Clamp
