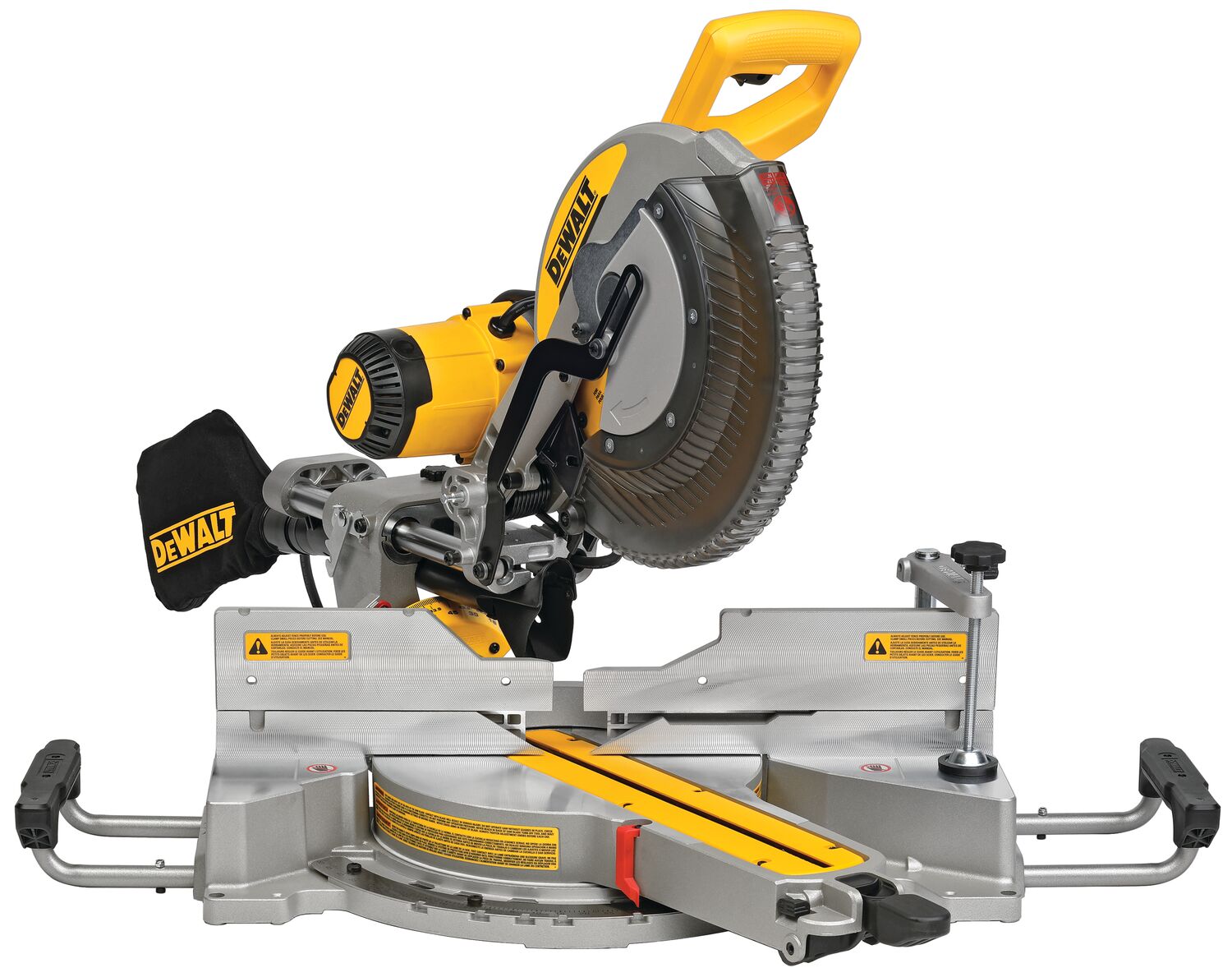

Dewalt DWS780-XE 305mm 12inch Compound Slide Mitre Saw
DWS780-XE
***Bonus DWX723-XE Mitre Saw Stand***
Product Details
The DEWALT 305mm diameter double bevel slide compound mitre saw is suitable for both small profiles and large construction timbers up to 110mm x 303mm. The XPS shadow line cut indicator increases productivity by illuminating the work piece for fast accurate alignment of the blade.
The accurate new quick release bevel stop setting sets the bevel angle of up to 49 degree left and right. With the blade speed of 3800rpm, the mitre saw has input power rating of 1675W and output power rating of 960W. The mitre saw has high-quality 60 tooth blade, blade spanner, dust bag and material clamp.
Features and Benefits
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
- Outstanding dust control and deflection away from cutting area
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Specifications
Power Input - 1675 Watts
Blade Speed - 3800 rpm
Blade Diameter - 305 mm
Blade Bore - 30 mm
Bevel Capacity - 49/49 °
Mitre Capacity [right/left] - 60/50 °
Cutting Capacity at 90°/90° (W x H) - 303 x110 mm
Cutting Capacity at 90°/90° (W x H) - 345 x 76 mm
Cutting Capacity at 45°/90° (W x H) - 268 x 63 mm
Cutting Capacity at 45°/90° (W x H) - 345 x 44 mm
Cutting Capacity at 90°/45° (W x H) - 211 x 112 mm
Cutting Capacity at 90°/45° (W x H) - 244 x 76 mm
Max. Cutting Capacity at 45°/45° - 212 x 76 mm
Max. Depth of Cut [Saws] - 170 mm
Weight - 24.8 kg
Depth - 470 mm
Length - 770 mm
Height - 396 mm
Note: Due to shipping limits this unit is collection only.
