Milwaukee Interior Single Slope Rotary Laser 305M 1000 Green Kit
M18RL305-301C
Product Details
The MILWAUKEE® M18™ Interior Single Slope Rotary Laser 305m (1000') Green features impact protection and a simplified setup. Designed for harsh jobsite conditions, we ensure your laser is protected, withstanding up to a 1.5m drop. Usable in both horizontal and vertical orientations and 3 modes: Rotational Mode, Sweep Mode and Plumb Point Mode it provides users the opportunity to best meet any needs they may have.
The Rotary Laser is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The all-in-one Detector (RD300G) features Centre Find, for easy, fast, and automatic long-range alignment. This detector can detect beams up to 305m (Diameter) and features simplified menu navigation with a user-friendly design. The amplified rare earth magnets provide the detector with a strong hold onto steel studs.
Features and Benefits
Features and Benefits
- Withstands 1.5m drops with reinforced housing
- Water and dust resistant
- Automatic alignment with Centre Find
- Simplified menu navigation
- Horizontal plane accuracy +/- 1.6mm at 30m
- Vertical plane accuracy +/- 3.2mm at 30m
- 305m (diameter) working range with RD300G
- 300, 600, 1,200 RPM
- Sweep Mode scans variable angles
- Vertical plumb dot
- Low/High Bump Sensitivity Mode
- 5/8”-11 mounting thread
- ONE-KEY™ tool tracking & management
Specifications
Platform – M18™ / ONE-KEY™
Voltage – 18V
Working Range with RD300 – 305m (1000’) (Diameter)
Horizontal Plane Accuracy – +/- 1.6mm at 30m
Vertical Plane Accuracy – +/- 3.2mm at 30m
Plumb Point Accuracy – +/- 3.2mm at 30m
Self Leveling Range – +/- 5°
Self Leveling Orientation – Horizontal & Vertical
RPM – 300, 600, 1,200
Drop Rating – 1.5m
Laser Colour – Green
Mount Threading – 5/8”-11
Run Time – 26 Hours
Laser Class – Class 2
Dimensions – 254 x 307 x 259 mm
Weight – 3.4kg

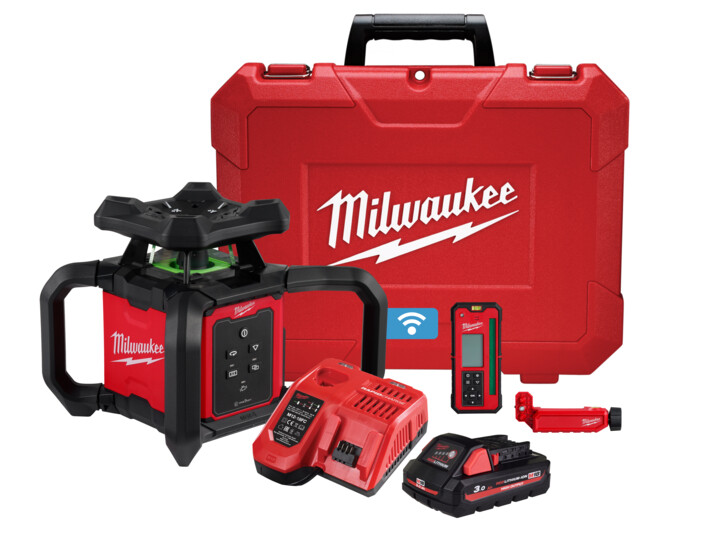

What’s Included
Rotary Detector 305m
RD300G
M18™ Redlithium™ High Output™ 3.0ah Battery
M18HB3 x 1
M12™ & M18™ Rapid Charger
M12-18FC
