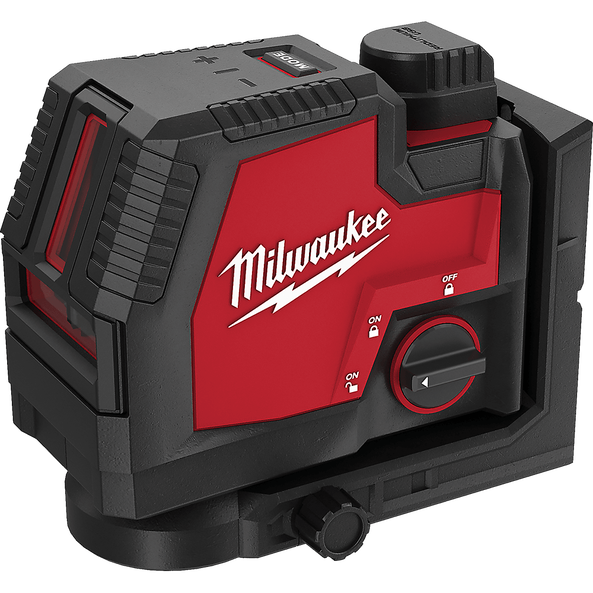

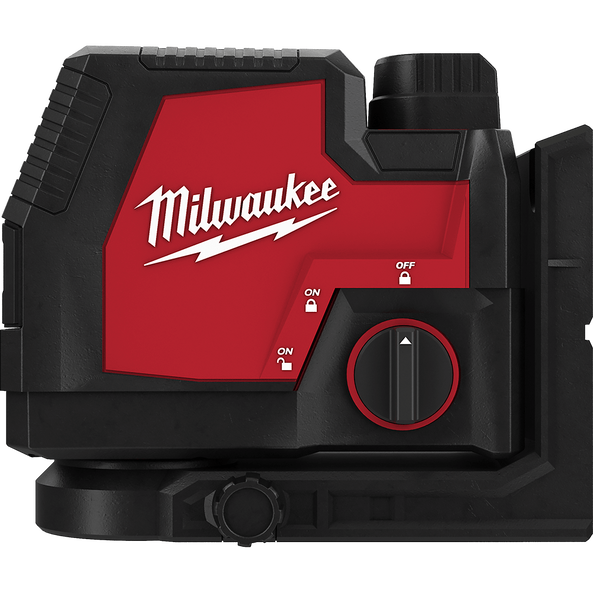

L4CLL-301C Rechargable Cross Line Laser Kit
The REDLITHIUM™ USB Rechargeable Cross Line Laser provides an all-in-one functionality with horizontal levelling and vertical alignment.
It is powered by REDLITHIUM™ USB, delivering users maximum run-time and uncompromised visibility.
The high-intensity laser beams allow the green lines to be visible up to 30 meters for fast, accurate leveling and alignment. The magnetic bracket features micro control, providing you with a faster set-up and point to point alignment at long distances.
The REDLITHIUM™ USB Rechargeable Cross Line Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.
Users can charge REDLITHIUM™ USB Batteries inside the laser via a Micro USB or swap it out with additional REDLITHIUM™ USB Batteries for virtually no downtime.
FEATURES
8 hours of runtime on a single charge using REDLITHIUM™ USB 3.0Ah battery
Visibility range of up to 30 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
Internally charges REDLITHIUM™ USB batteries via micro-USB port
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)
SPECIFICATIONS
PLATFORM REDLITHIUM™ USB
IP RATINGS IP54
DIMENSIONS 89
WEIGHT 1.0 kg
WARRANTY 2 Years
NUMBER OF BEAMS 2 Lines
LOCKING PENDULUM Yes
SELF-LEVELING ± 4° Tilt
ACCURACY ± 3.18 mm over 10 m
IMPACT RESISTANT 1 m
WORKING RANGE 30 m
RANGE WITH DETECTOR50 m
THREAD MOUNT 1/4"-20

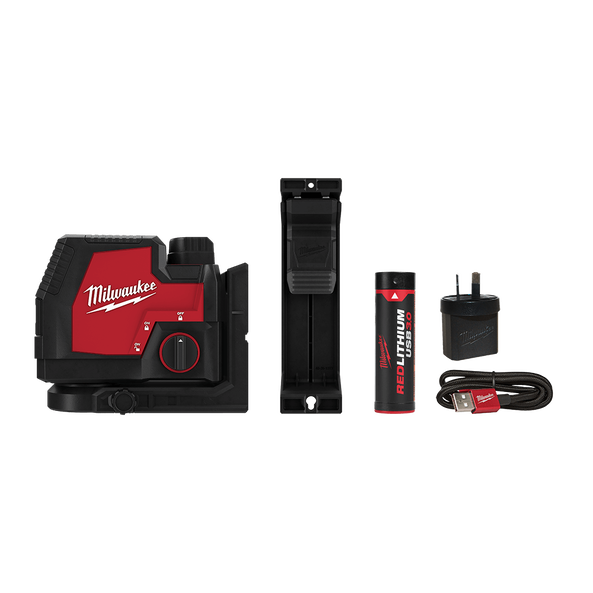

WHAT'S INCLUDED
(1) REDLITHIUM™ USB Rechargeable Cross Line Laser (L4CLL)
(1) L4 B3 REDLITHIUM™ USB 3.0Ah Battery
(1) Laser Track Clip with Quick Connect (48351313)
(1) Heavy Duty Plug
(1) AC Adaptor
(1) Carrying Case
Hector Jones Ltd are NZ Authorised Sales and Service Agents for Milwaukee Power Tools
2 Year Manufacturer Tool Warranty
These tools are guaranteed by the Authorized NZ Distributor against any defects in workmanship or materials. Defects in construction or operation not attributable to normal wear, overloading, abusive treatment or careless handling will be repaired without charge by any Authorized Milwaukee Service Agents throughout New Zealand or by our own On Site Technical Service Workshop.
